Wiring Diagram Honeywell R8182d Wiring Diagram. Aquastats diagnosis repair setting wiring heating system boiler aquastat controls how to set the hi limit lo and diffeial dials on like honeywell r8182d combination control help with triple wired incorrectly thermostat doityourself com community forums ra832a relay for 2nd zone l7224u 1002 aquastar l8048g 2 taco valves adding a 24v common wire wall oil burner electrician talk Read More.

Heating Boiler Aquastat Control Diagnosis Troubleshooting Repair On Controls Like The Honeywell R8182d Combination Control Aquastat

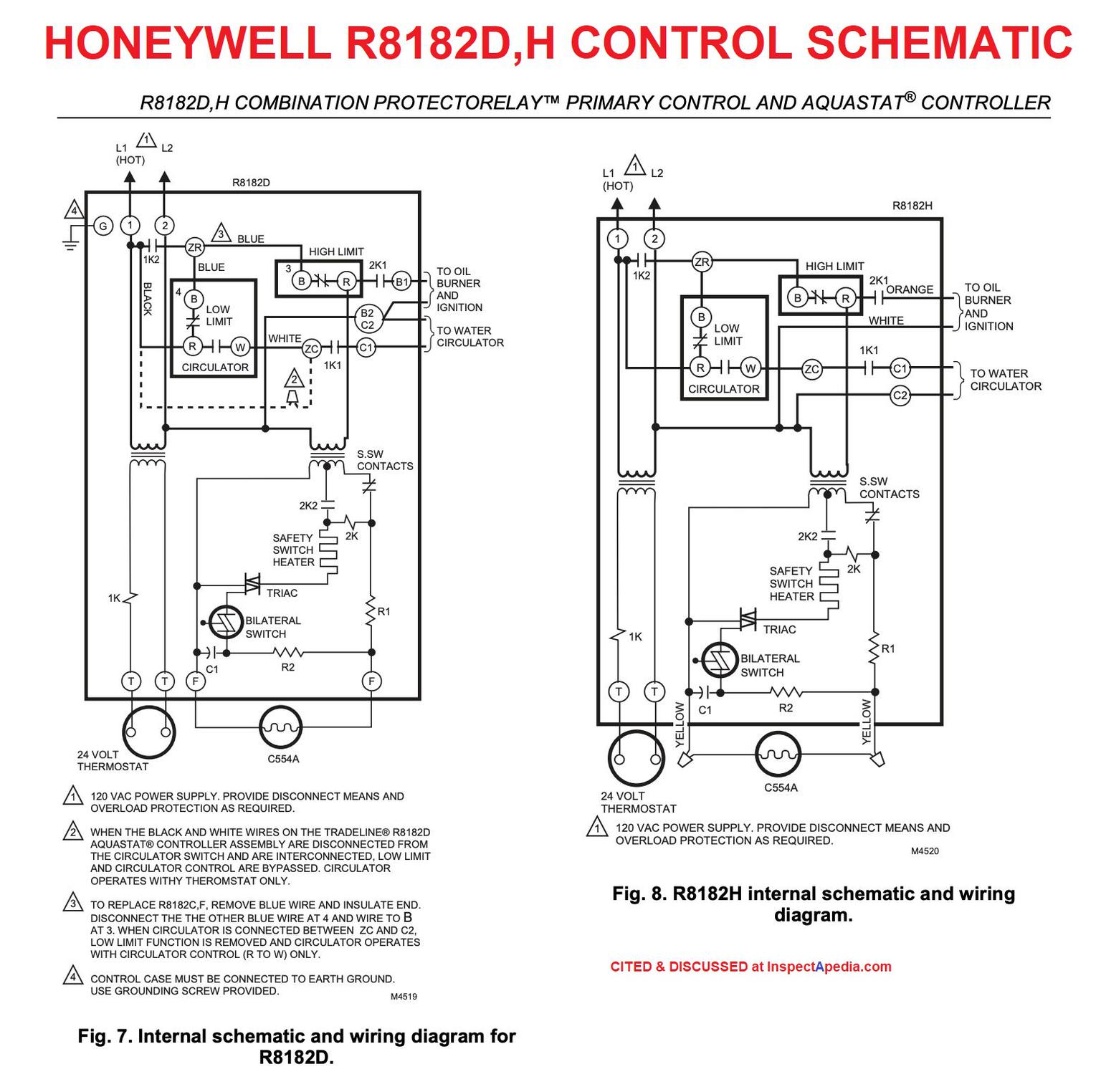

R8182D internal schematic and wiring diagram.

. 2 R8285B R8222D 12 60 Dpdt 208240 Fig. Additional zones require a separate 24V thermostat and R845 Relay. Relay constructed for high reliability.

Honeywell r8182d wiring diagram. Contains all the essential Wiring Diagrams across our range of heating controls. Diagram on top of relay provide easy iden-tification for wiring and checking system operation.

Honeywell Aquastat L8148e Wiring Diagram Wiring Site Resource. See form 68 0040 wells and fittings for. 5 R8285E R8222F 12 60 Dpst Fig.

Wiring Diagram Pictures Detail. 4-85 Form Number 60-20564 Honeywell Inc. OPERATION R8182D wired for R8182BE Replacement or R8182H wired for R8182J Replacement When the R8182D or H is wired to exclude the low limit.

Aquastats diagnosis repair setting wiring heating system boiler aquastat controls how to set the hi limit lo and diffeial dials on like honeywell r8182d combination control l8148a e j relays l8148j help wall 6006 a l8148 page 2 doityourself com community forums with triple wired incorrectly thermostat. Fan Replacement Rating Voltage See Wiring Center Relay AFL ALR Switching Vac Diagram R8285A R8222B 12 60 Spdt 120 Fig. Leave a Reply Cancel reply.

View and download honeywell r8182d product data online. Required fields are marked. Aquastats Diagnosis Repair Setting Wiring Heating System Boiler Aquastat Controls How To Set The Hi Limit Lo Limit And Differential Dials On Controls Like The Honeywell R8182d Combination Control Aquastat.

Honeywell r8182d wiring diagram. Refill the boiler and check for water leakage. Mounting the R8182D TRADELINEﬁ If the existing immersion well does not fit the R8182D immersion well clamp use a 1249094 immersion well adapter order separately.

The Honeywell Home trademark is used under license from Honeywell International Inc. By Admin November 9 2017. Summary of Contents for Honeywell R8182D.

Honeywell r8182d wiring diagram. Control Replacement Contact Rating See Wiring Center Relay AFL ALR Switching Input Voltage Vac Diagram R8285A R8222B 12 60 spdt 120 or 208240 Fig. 4-94 Honeywell Inc.

Refill the boiler and check for water leakage. After wiring swing control against the backplate and refasten with the screw. 1994 Form Number 69-048221 69-04822 R8285AB Control Centers.

Bottini Fuel is a residential and commercial heating oil distributor and oil heat service company in Wappingers Falls NY and with offices in other New York locations. All models have capability for zone control with zone valves. 5 R8285G R8228A 1618 9672 Spst Fig.

6 R8285F R8222C 12 60 Dpst Fig. M4524 SAFETY SWITCH. Heil vr 8345 heat pump diagram aquastats diagnosis setting boiler aquastat controls how hi limit lo diffeial dials like r8182d combination resideo t6 pro quality hvac guides 101 locating c ecobee install with 301c controller multiple e3point detectors dream vc4043 series electric way solenoid air.

Internal schematic and wiring diagram for R8182D. Page 1 All models use a 24V thermostat and C554A Cadmium Sulfide Flame Detector. Double quick-connects available on coil terminals.

1 R8285B R8222D 12 60 dpdt 120 208240 or 120208240 Fig. Honeywell Smart Gas Valve Wiring Diagram. You ll probably see a thermostat jumper wire connecting the rc and rh terminals.

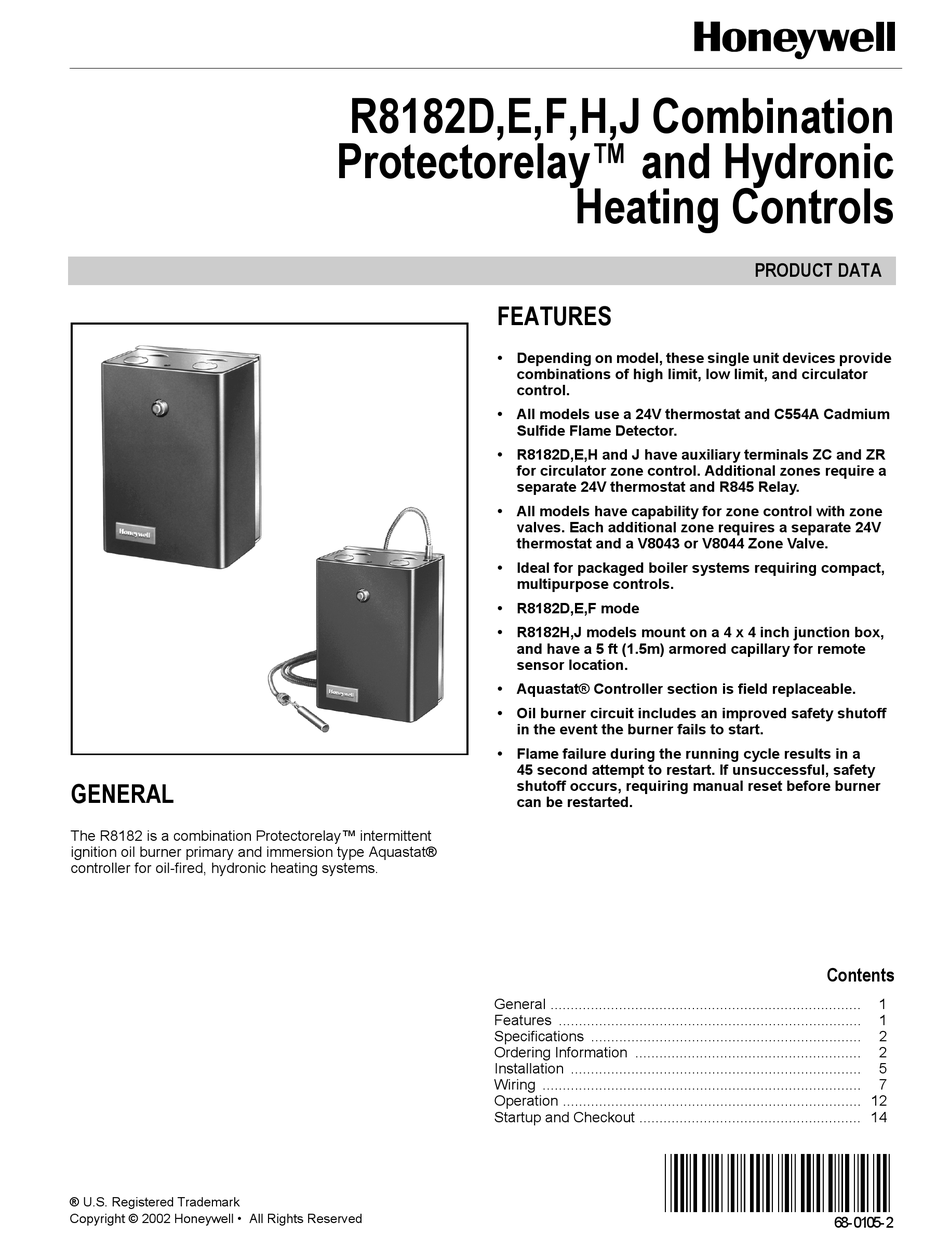

Honeywell Aquastat L8148j Wiring Diagram. R8182DEFHJ COMBINATION PROTECTORELAY PRIMARY CONTROL AND AQUASTAT. After wiring swing the control against the backplate and refasten the screw.

Our Wiring Diagrams section details a selection of key wiring diagrams focused around typical Sundial S and Y Plans. Honeywell R8182d Wiring Diagram. RG is component recognized by Underwriters Labo- ratories Inc.

Honeywell r8182d wiring diagram. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED. Wiring Diagram Automatic Door Wiring Diagram.

And meets their If cad cell leads are run with line voltage wires breakout knockout at the. I read this on another site Aquastats. Honeywell R8184g Wiring Diagram.

Setting Wiring Heating System Boiler Aquastat Controls how to set the HI limit LO limit and DIFFerential dials on controls like the Honeywell R8182D Combination Control Aquastat - maybe that explains why they did it. Contains all the essential wiring diagrams across our range of heating controls. Quick-connect terminals are standard.

Disconnect the power supply. Boiler Aquastat Wiring Diagram. Honeywell Aquastat Relay L8148e Wiring Diagram.

View and download honeywell r8182d product data online. If the existing immersion well does not fit the r8182d immersion well clamp use a 1249094. Honeywell L8148e1265 High Limit Aquastat Relay With 15 F Fixed Differential.

Honeywell Boiler Control Manual 2 typical hookup for tradeline r8184g with indicator light. Honeywell inc 1885 douglas drive north minneapolis minnesota 55422 612 542-7500 in canadahoneywell limited 740 ellesmere road scarborough ontario ml p 2v9 international sales and service offices in all principal cities of the world. Aquastats setting wiring heating system boiler aquastat controls how to set the hi limit lo and diffeial dials on like honeywell r8182d combination control diagnosis repair 6006 a l8148 doityourself com community forums help.

Aquastats diagnosis repair setting wiring heating system boiler aquastat controls how to set the hi limit lo and diffeial dials on like honeywell r8182d combination control problem with thermostat or relay l8148e doityourself com community forums issues replacement of help wall l8148e1265 high 15. Your email address will not be published. R8182H internal schematic and wiring diagram.

Honeywell R482J 1 2 6 8 3 4 Honeywell R882A 7 8 W BR8845U has lower output load rating. Wiring Diagram Auto Gauge Oil Pressure Wiring Diagram. Honeywell R882B 6 8 W BUse RA889A if normally closed contacts are Honeywell R882C.

R8182DEH and J have auxiliary terminals ZC and ZR for circulator zone control. Make Wiring Connections And Mount Control. R8182DH COMBINATION PROTECTORELAYŽ PRIMARY CONTROL AND AQUASTATﬁ CONTROLLER 5 69-0599Š2 Fig.

Aquastats setting wiring heating system boiler aquastat controls how to set the hi limit lo and diffeial dials on like honeywell r8182d combination control diagnosis repair help with triple wired incorrectly thermostat doityourself com community forums 6006 a l8148 relay. See form 68-0040 Wells and Fittings for. 3 R8285C R8222A 12 60 Spst or 120 Fig.

Honeywell R482C 1 2 6 8 3 5 L1 and L2. 4 R8285D R8222U 12 60 Dpst 208240a Fig. By Vallery Masson on May 28 2021 May 28 2021 Leave a Comment on Honeywell R8182d Wiring Diagram.

Thanks to Bottini Fuel service manager Ron Thomas for discussing aquastat functions low limit controls oil burner short cycling causes and boiler maintenance reliability and service contracts 4132010. Honeywell r8184g4009 wiring diagram Honeywell R8184g4009 Wiring Diagram Library U2022 Rh Diagrroduct Today Controller Honeywell Wiring Schematic At.
